62.0 x 43.2 x 27.2 cm

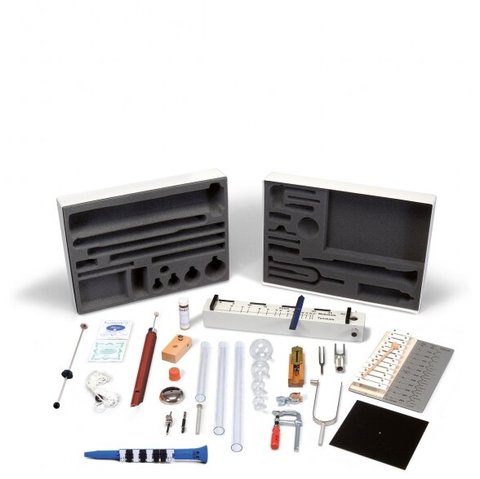

The acoustics kit allows students to carry out numerous experiments on acoustics independently. A wide variety of sound sources are studied to begin with and the concepts of noise, bangs and tones as well as pitch and loudness are investigated. Waves along a rope are used to illustrate harmonic vibrations and overtones. There is also some extensive study of various different musical instruments. Different high-pitched tones are generated by means of a monochord and the ensuing intervals are calculated experimentally. These studies are expanded to other instruments and can easily lead over to a study of musical notes.
Noise, bangs, pure tones
Vibrating air columns
Whistles and pipes
Vibrating bars, plates and bells
Tuning fork with plotter pen
Travelling waves along a rope
Velocity of propagation of sound
Moving sources of sound (Doppler effect)
Plate vibrations (Chladni figures)
Vibrations of a bell
Standing waves on a rope, overtones
Sounds of musical instruments
Timbre of the human voice
Measurement of wavelength (Kundt figures)
Helmholtz ball resonators
Pitch of string instruments
Pitch of wind instruments
C-major scale and its intervals
Semitones, major and minor
Dimensions: 530x375x155 mm³ approx.
Weight: 4.5 kg approx.
1 Monochord, with ruler and musical scale
1 Steel string
1 Perlon string
1 Spring balance on support
1 Reed pipe with 8 valves
1 Tuning fork with plotter pen, 21 Hz
1 Tuning fork, 440 Hz
1 Light-metal tuning fork, 1700 Hz
1 Variable-length closed air column
1 Tuned open air column
1 Chladni disc with handle
1 Galton whistle
1 Kundt pipe with retaining clip
5 g Lycopodium powder in sprinkling cellar
1 Metallophone with beater
1 Rope for demonstrating waves
1 Helmholtz resonator, 70 mm dia.
1 Helmholtz resonator, 52 mm dia.
1 Helmholtz resonator, 40 mm dia.
1 Helmholtz resonator, 34 mm dia.
1 Screw clamp
1 Plastic block
