DC maitinimo šaltinis 0–500 V (115 V, 50/60 Hz)



Speciali Kaina: 771.98 €
771.98

Informacija apie prekę Prekės kodas 1003307 [U33000-115] Svoris 8.55 kg Išmatavimai 7.6 x 33.0 x 20.3 cm Ženklas 3B Scientific

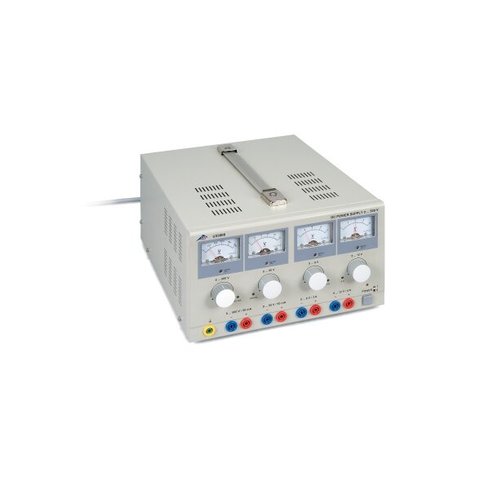

DC Power Supply 0-500 V (115 V, 50/60 Hz)

Low voltage power supply with four outputs primarily intended to simultaneously supply power for the Teltron line of electron tubes and Helmholtz Coils, with four independent, adjustable DC voltages. The DC voltages are stabilized, regulated, floating, and galvanically isolated from one another, in addition to being short circuit proof and secure from external voltages.

Specifications:
500 V output: Voltage: 0 − 500 V DC, max. 50 mA Stability at full load: ≤0.01% ± 100 mV Residual ripple: ≤20 mV 50 V output: Voltage: 0 − 50 V DC, max. 50 mA Stability at full load: ≤0.1% ± 30 mV Residual ripple: ≤50 mV 12 V output: Voltage: 0 − -12 V DC, max. 4 A Stability at full load: ≤0.1% ± 30 mV 8 V output: Voltage: 0 − 8 V DC, max. 3 A Stability at full load: ≤0.1% ± 30 mV Displays: Analogue, class 2 Connections: 4 mm safety sockets Power consumption: 50 VA
