Geigerio-Miulerio vamzdelis skaičiavimui



Speciali Kaina: 355.38 €
355.38



Informacija apie prekę Prekės kodas 1001035 [U8533430] Svoris 0.12 kg Ženklas 3B Scientific

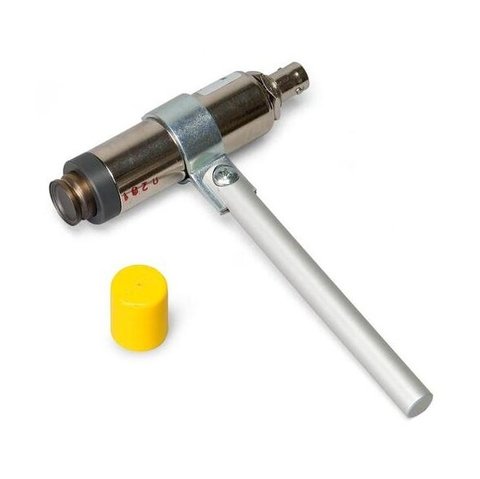

Geiger-Müller Counter Tube

Self-quenching halogen pulse ionisation chamber for detecting alpha, beta, gamma and x-ray radiation. In metal housing with mica window, removable mounting clamp with shaft. Long plateau length.
Filling: Neon/argon mixture, halogen as quenching agent
Cathode dimensions: approx. 39x14 mm²
Window: mica, 9 mm dia.
Mass per unit area: 1.5 – 2.0 mg/cm²
Plateau length: 400 V – 600 V
Operating voltage: 400 – 600 V (recommended: 500 V)
Relative plateau slope: 0.04 %/V
Dead time: 90 µs
Limiting resistor: 10 MΩ, integrated in holder
Shaft: approx. 100 mm x 10 mm dia.
Dimensions counter tube: approx. 85 mm x 25 mm dia.
Weight: approx. 160 g
