Interferometras



Informacija apie prekę Prekės kodas 1002651 [U10350] Svoris 9.25 kg Išmatavimai 41.1 x 39.1 x 28.2 cm Ženklas 3B Scientific

Interferometer

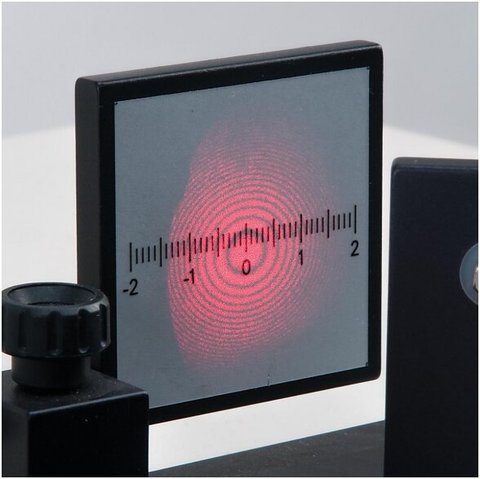

This complete equipment set comprises high-grade optical components mounted on a heavy, rigid base plate for precise and reproducible measurements. The large optical components permit a generation of clear and well-defined interference patterns in daylight. The reflective observation screen has an adjustable inclination. Pre-defined component positions allow quick rearrangement to ensure extremely rapid preparation for the various experiments.

Experiment topics:
Michelson interferometer Fabry-Perot interferometer Determination of the refractive index of glass* Determination of the refractive index of air* Twyman-Green test for optical components (qualitative)* *U10351 accessory set required

Specifications:
Stable plastic box for storing the mounted and adjusted interferometer Beam splitter: diameter 40 mm, evenness λ/10 (front side), λ/4 (rear side) Surface-coated mirror: dimensions 40x40 mm², evenness
