Maitinimo šaltinis +/- 12V P4W50 (230 V)

Informacija apie prekę Prekės kodas 1021621 [U8557890-230] Svoris 0.108 kg

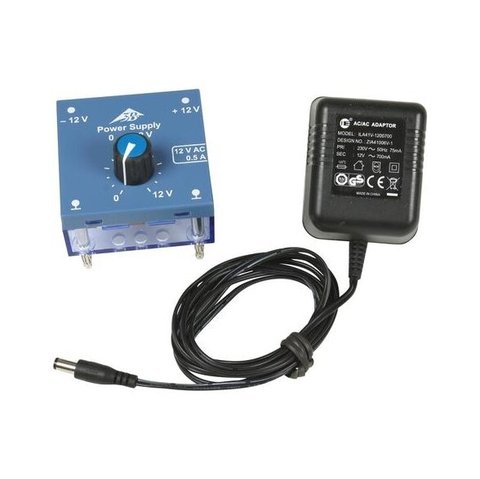

Voltage Supply ±12V P4W50 (230V, 50/60 Hz) Symmetric, adjustable direct-voltage supply for electronic circuits, in particular, with operational amplifi er LM 741 (P-1012981), e.g. non-wired, inverting and noninverting operational amplifi er, adder and subtractor, diff erentiating and integrating element or non-inverting Schmitt trigger. With a plug-in power supply, 12V AC, 500 mA.

• Safety transformer according to EN 61558-2-6.
• Safe isolation between the power supply network and output current circuits.

Output voltage:                                               0 … +12 V, 0 … -12 V (symmetric)
Residual ripple:                                               < 3 mV
Output current (simultaneously per output):  150 mA, short-term 250 mA
Outputs:                                                         4mm pins Pin spacing: 50x50 mm2
Dimensions:                                                  approx. 65x65x70 mm3
Weight (with plug-in power supply):              approx. 390 g
