Papildomas komplektas besisukančiai sistemai ant oro pagalvės



Informacija apie prekę Prekės kodas 1000783 [U8405690] Svoris 1.583 kg Ženklas 3B Scientific

Supplementary Kit for Rotating System on Air Bed

Supplementary kit for the rotating system on air bed U8405680 for investigating frictionless rotational motion and oscillations using a large rotating disc. On the underside of the large disc is an angle grid that can be used to provide triggers to a U8533380 laser reflection sensor if the rotation is to be recorded with the help of the 3B NETlog™ interface unit.
Typical oscillation periods: 20 s approx. to 2 mins approx.
Moment of inertia of large disc: 2.2 g m² approx.

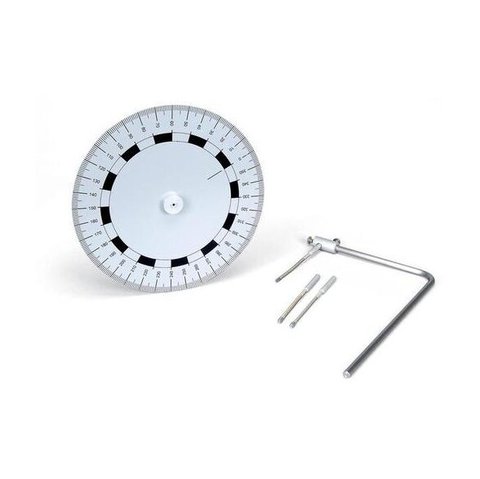

Contents:
1 Large disc with protractor scale, 350 mm
1 Scaffold stand
1 Cross sleeve
1 Set of coupling springs with magnet (1 N, 2 N, 5 N)
