Šiluminio plėtimosi matavimo aparatas (S modelis)



Informacija apie prekę Prekės kodas 1002978 [U15405] Svoris 0.631 kg Išmatavimai 53 x 6 x 24 cm

Thermal Expansion Apparatus S

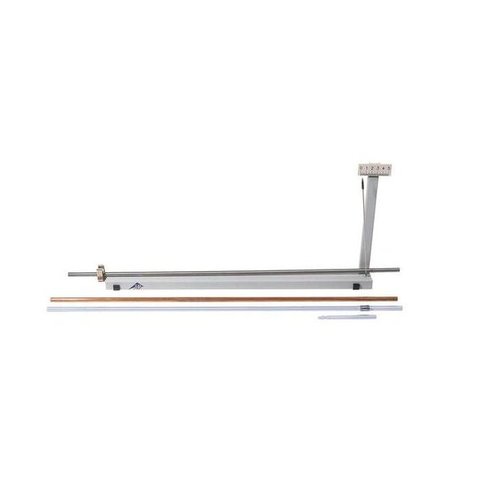

A device for measuring the thermal expansion of solids in dependence on length and material. The scope of delivery includes three sample tubes (steel, brass and glass) which are heated by passing water vapor through them. Consists of a base strip with a fixed bearing, pilot bearing, pointer and projectable scale.

Scale dimensions: approx. 140x200 mm²
Measuring range: 1 mm
Reading accuracy: 0.05 mm
Tube length: approx. 630 mm
Dimensions: approx. 530x60x240 mm³
Weight: approx. 0.6 kg
