Skaitmeninis multimetras P3340



Speciali Kaina: 61.23 €
61.23



Informacija apie prekę Prekės kodas 1002785 [U118091] Svoris 0.45 kg Išmatavimai 10.2 x 20.3 x 5.1 cm Ženklas PeakTech

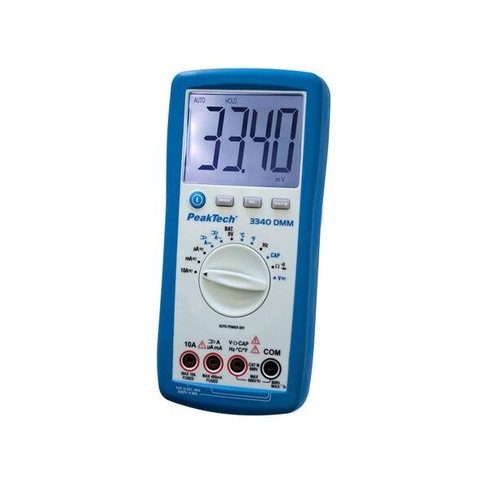

Digital Multimeter P3340

Digital multimeter for universal use in measuring voltage, current, resistance, frequency, capacitance, temperature and also including diode and continuity tests . Includes a measurement value hold function, analogue bar graphs, automatic polarity reversing, overload and overvoltage protection as well as an acoustic overload indicator, automatic switch off. Device comes in a shock-proof holster with fold-out stand. Including testing leads, type K temperature sensor and batteries.

DC voltage:                          400 mV − 1000 V, 5 ranges, ±0.5% ± 2 digits
AC voltage:                           4 − 700 V, 4 ranges, ±1.2% ± 3 digits
DC current:                           400 μA − 10 A, 6 ranges, ±1% ± 3 digits
AC current:                           400 μA − 10 A, 6 ranges, ±1.5% ± 5 digits
Resistance:                          400 Ω − 40 MΩ, 6 ranges, ±1% ± 2 digits
Capacity:                               40 nF − 100 μF, 5 ranges, ±3% ± 5 digits
Temperature:                        -20 − 760°C, ±3% ± 3 digits
Display:                                 3¾ digit LCD, 39 mm, max: 3999
Operating voltage:               9 V battery
Safety classification:          CAT II 1000 V (IEC-1010-1)
Fuse:                                     F1: F 500 mA / 600 V
                                               F2: F 10 A / 600 V, Imax. = 10 A for 30 s
Dimensions:                         approx. 92x195x38 mm3
Weight:                                 approx. 200 g
