Teslametras N (230 V, 50/60 Hz)

Informacija apie prekę Prekės kodas 1021669 [U331101-230] Svoris 0.58 kg

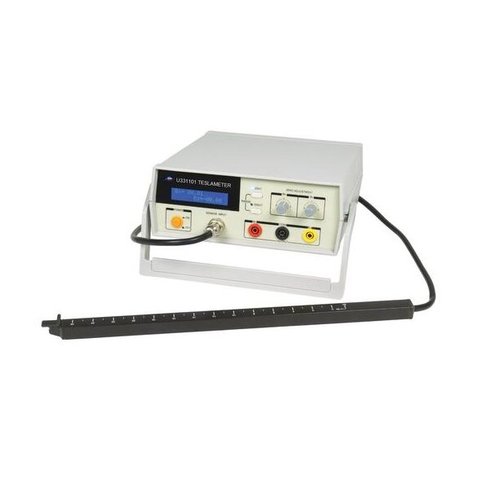

Teslameter N (230 V, 50/60 Hz) This economical digital teslameter will allow students to incorporate quantitative measurements into their magnetism experiments. The unit includes a Hall sensor probe for measuring axial and tangential magnetic fields up to 200 mT. The probe also serves as a ruler as it includes a metric scale. There are two measuring ranges, 0-±20 mT and 0-±200 mT. The teslameter can be calibrated by the user. In addition to having a digital display, the unit outputs a voltage proportional to the magnetic field which can be measured with a data logger, XY-recorder or analogue multimeter.

Measurement ranges:            0 − ±20 mT, 0 − ±200 mT
Resolution:                             0.01 mT, 0.1 mT
Digital Display:                       3½ digit LCD
Height of digits:                      13 mm
Input:                                      GX16-6 socket
Output:                                   4 mm safety sockets
Dimensions of unit:                approx. 205x230x85 mm³
Dimensions of probe:             approx. 360x15x25 mm³
