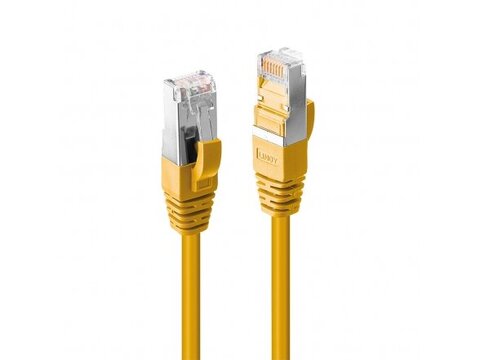

0.3m Cat.6 S/FTP LSZH Cable, Yellow

Twisted Pair Patch Cable with RJ45 connectors Cat.6 S/FTP PIMF, LSZH Integrated snagless connector for latch protection Gold plated pins for better conductivity and elimination of signal loss 10 year warranty Cat.6 S/FTP network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T. Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions. Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m Available colours: Black, Blue, Gray, Red, Green
Connectors Connector A: RJ45 Male Connector B: RJ45 Male Housing Material: Polycarbonate Connector Plating: Nickel Pin Construction: Brass Pin Plating: Gold plated Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in) Cable Construction Length: 0.3m (0.98ft) Colour: Yellow Type: Cat.6 Jacket Diameter: 6.2mm (0.24in) Jacket Material: LSZH Conductor Material: Copper Conductor Gauge: 26AWG Shielding: Aluminium / Polyester Specifications Supported Bandwidth: 250MHz Nominal Attenuation: 38.3dB/100m @250MHz Minimum Band Radius: 18.6mm (0.74in) Operating Temperature: -25°C - 60°C (-43°F - 140°F) Storage Temperature: -25°C - 60°C (-43°F - 140°F) Miscellaneous Packaging Type: Polybag Warranty (Years): 10 Certificated: RoHS, REACH, UL Purchasing Information No.: 45979 EAN: 4002888459792 This product is also available in other lengths 45979 - 0.3m (0.98ft) 45980 - 0.5m (1.64ft) 45981 - 1m (3.28ft) 45982- 2m (6.56ft) 45983 - 3m (9.84ft) 45984 - 5m (16.44ft) 45985 - 7.5m (24.61ft) 45986 - 10m (32.81ft) 45987 - 15m (49.21ft) 45988 - 20m (65.62ft) 45989 - 30m (98.43ft)
