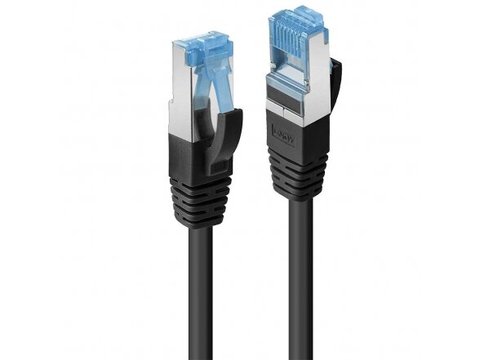

0.5m Cat.6A S/FTP TPE Network Cable, Black

Twisted Pair Patch Cable with RJ45 connectors Cat.6A S/FTP PIMF, TPE Integrated snagless connector for latch protection Gold plated pins for better conductivity and elimination of signal loss 10 year warranty Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T. Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The TPE used as a sheath material provides increased flexibility and easy handling of cables Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Connectors Connector A: RJ45 Male Connector B: RJ45 Male Housing Material: Polycarbonate Connector Plating: Nickel Pin Construction: Copper Alloy Pin Plating: Gold plated Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in) Cable Construction Length: 0.5m (1.64ft) Colour: Black Type: Cat.6A Jacket Diameter: 6.2mm (0.24in) Jacket Material: TPE Conductor Material: Copper Conductor Gauge: 27AWG Shielding: Aluminium Braid Specifications Supported Bandwidth: 500MHz Nominal Attenuation: 49.3dB/100m @500MHz Minimum Band Radius: 74mm (2.91in) Operating Temperature: -10°C - 60°C (14°F - 140°F) Storage Temperature: -20°C - 75°C (-4°F - 167°F) Miscellaneous Packaging Type: Polybag Warranty (Years): 10 Certificated: RoHS, REACH, UL, California Proposition 65 Purchasing Information No.: 47411 EAN: 4002888474115 This product is also available in other lengths 47410 - 0.3m (0.98ft) 47411 - 0.5m (1.64ft) 47412 - 1m (3.28ft) 47413 - 1.5m (4.92ft) 47414- 2m (6.56ft) 47415 - 3m (9.84ft) 47416 - 5m (16.44ft) 47417 - 7.5m (24.61ft) 47418 - 10m (32.81ft) 47419 - 15m (49.21ft) 47420 - 20m (65.62ft) 47421 - 30m (98.43ft)
