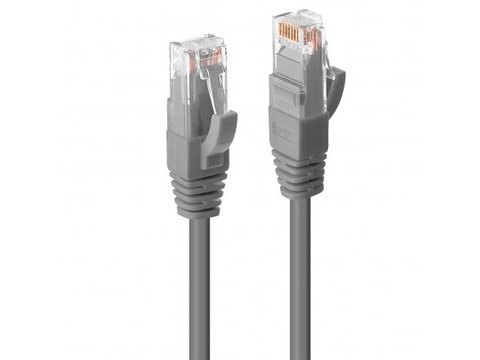

15m Cat.6 U/UTP LSZH Network Cable, Grey



Speciali Kaina: 41.96 €
41.96

Twisted Pair Patch Cable with RJ45 connectors and Test Report (100% Test) Cat.6 U/UTP, LSZH Integrated snagless connector for latch protection Gold plated pins for better conductivity and elimination of signal loss 10 year warranty Cat.6 U/UTP LSZH network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T. Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions. Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m. Available colours: Grey, Blue, Red, Black.
Connectors Connector A: RJ45 Male Connector B: RJ45 Male Housing Material: Polycarbonate Connector Plating: - Pin Construction: Brass Pin Plating: Gold plated Dimensions (approx.) WxDxH: 11.6x21.5x8.3mm (0.46x0.85x0.33in) Cable Construction Length: 15m (49.21ft) Colour: Grey Type: Cat.6 Jacket Diameter: 6.0mm (0.24in) Jacket Material: LSZH Conductor Material: Copper Conductor Gauge: 26AWG Shielding: Aluminium / Polyester Specifications Supported Bandwidth: 250MHz Nominal Attenuation: 38.3dB/100m @250MHz Minimum Band Radius: 18.0mm (0.71in) Operating Temperature: -25°C - 60°C (-43F - 140°F) Storage Temperature: -25°C - 60°C (-43F - 140°F) Miscellaneous Packaging Type: Polybag Warranty (Years): 10 Certificated: RoHS, REACH, UL Purchasing Information No.: 45408 EAN: 4002888454087 This product is also available in other lengths 45400 - 0.3m (0.98ft) 45401 - 0.5m (1.64ft) 45402 - 1m (3.28ft) 45403 - 2m (6.56ft) 45404 - 3m (9.84ft) 45405 - 5m (16.44ft) 45406 - 7.5m (24.61ft) 45407 - 10m (32.81ft) 45408 - 15m (49.21ft) 45409 - 20m (65.62ft) 45410 - 30m (98.43ft)
