Monokulinis mikroskopas ME5



Informacija apie prekę Prekės kodas 1020249 [W30900] Svoris 5.9 kg Ženklas 3B Scientific

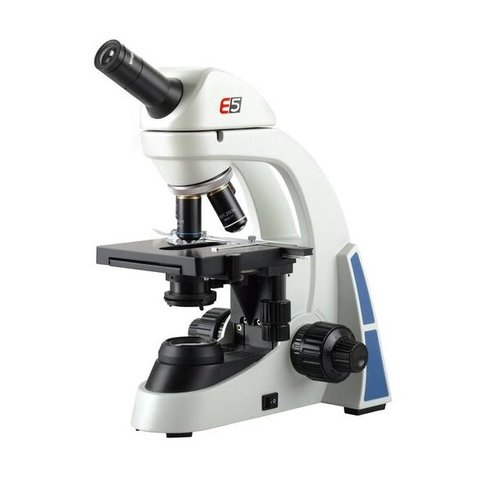

Monocular Microscope ME5

The microscope E5 stands out thanks to

• its ergonomic design with 30° angled eyepiece
• its compact and robust construction
• its excellent mechanical and optical quality
• its ease of operation

LED fibre optic illumination integrated into the base

• ensures even illumination of the field of vision
• prevents thermal effects from affecting the sample during prolonged examination
• features a long operating life and makes lamp replacement superfluous



Stand Robust, all metal stand with arm permanently connected to the base. Focussing by means of separate knobs for coarse and fine adjustment located on either side of the stand and operated by rack and pinion drive with ball bearings and retaining lever, adjustable stopper for protecting the object slides and objective.
Resolution of fine focussing adjustment: 0.002 mm Tube Monocular inclined 30°, head rotation 360° Eyepieces Wide field plan eyepiece PL 10x 18 mm Objectives Inverted objective revolver with 4 achromatic objectives 4x / 0.10, 10x / 0.25, 40x / 0.65, 100x / 1.25 (oil) Enlargement 40x, 100x, 400x, 1000x Object Stage x-y mechanical stage, 132 mm x 140 mm, with object guide and coaxial adjustment knobs perpendicular to the object stage, adjustment range 76 mm x 50 mm, accuracy 0.1 mm Illumination Adjustable LED lighting integrated in base, universal 100 to 240 V, 50/60 Hz power supply Condenser Abbe condenser N.A.1.25 with iris diaphragm , filter holder and blue filter Dimensions 350 mm x 213 mm x 366 mm approx. Weight 8 kg approx. Supplied Complete with dust cover
