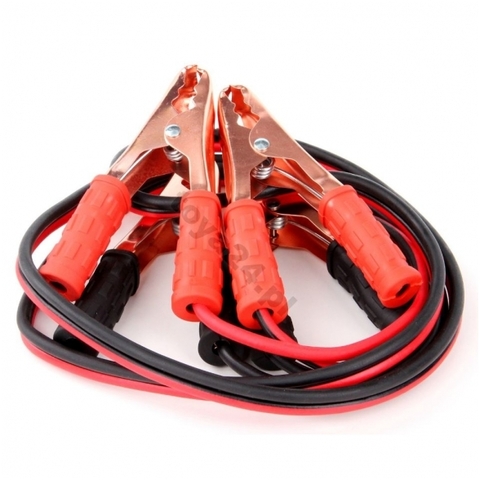

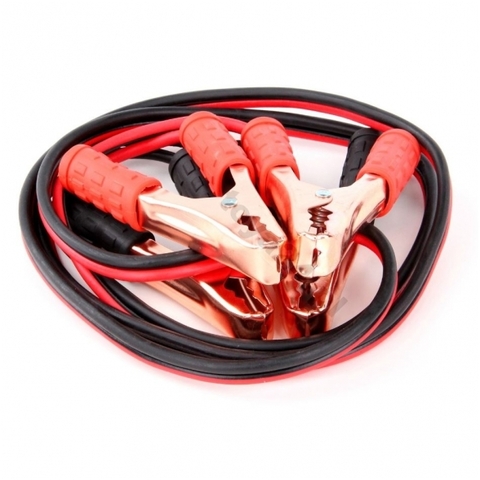

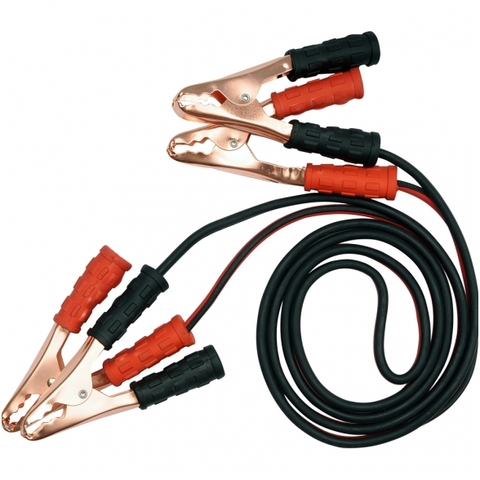

Užvedimo laidai 120A, 2,5M

vario medžiaga
skersmuo (mm) 0,25
ilgis (m) 2,5
izoliacijos storis 2mm
Current max. (A) 120
Svoris (g) 750

AMPERAGE: 120A; DIAMETER OF EACH WIRE: 0.25; NUMBER OF WIRES: 80; OUTER DIAMETER: OD 7.2; LENGTH: 2.5M; 60A: VOLTAGE DROP 1.5V, 100A: VOLTAGE DROP 2.5V, 120A: VOLTAGE DROP 3.0V; CUT AREA OF EACH WIRE: 4MM2;
THICKNESS OF INSULATION: > 2MM; CONNECTION BETWEEN THE CONNECTOR AND WIRE WITHSTAND A PULLING WITH FORCE 100N MIN; TEMPERATURE RANGE: -40OC ÷ +100OC; CONDITIONING IN EACH TERMINAL TEMPERATURE FOR A 4 HOURS; WIRE CUT: 5MM2
