Plytelių pjaustymo staklės -400 mm

Product description

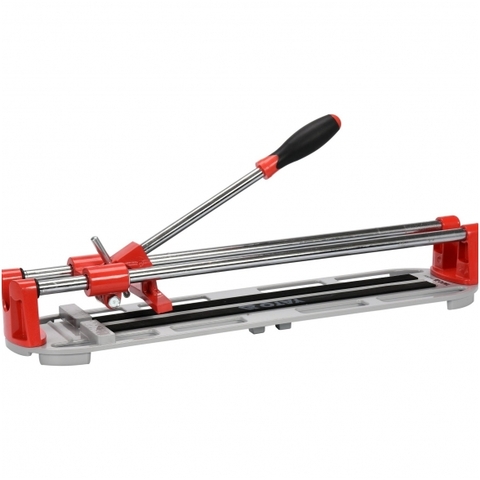

Cutter for l-400 mm tiles. The base is made of die-cast aluminum with mounted two movable supports for supporting large tiles. The bearing breaker assembly is mounted on stable, steel guides made of 16 mm diameter tubes. Cutting knife - disk Ø 8 mm permanently mounted on the stem fi 10 x 82 mm, On the work surface are glued two belts technical mikrogumy, facilitating the breaking of tiles. Breaker lever
steel fi 15 mm, also acts as a knife position lock. "2K" handpiece.

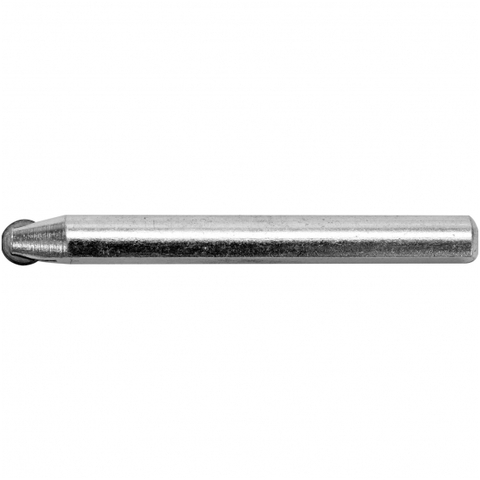

Replacement knife for index-yt-37038
Purpose / use
For cutting and breaking ceramic floor and wall tiles
Technical data
Index number YT-37034
EAN 5906083033827
Brand Yato
Gross weight (kg) 4.6250
Master Carton MC 4
Pal 80

ALUMINIUM BASE, CUTS- 400 MM; 16 MM LINEAR BEARING INSIDE; DIAM. OF SOLID ROAD - 16 MM; CUTS UP TO 12 MM THICK; PENCIL SCORING WHEEL - DIAM. 8MM
